Feature and usage |
|
|

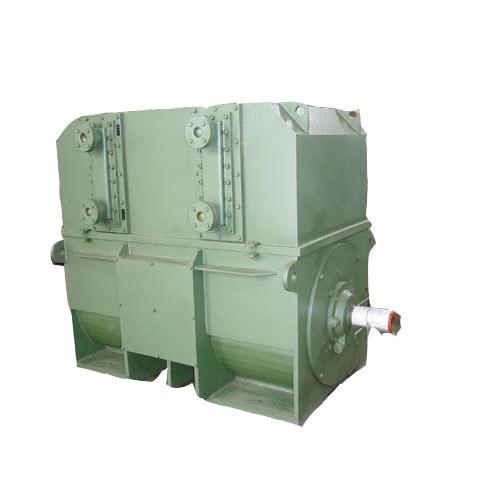

YKS series (6kv 10kv) 3-Phase High Voltage Motor produced according to JB/T10446-2004(center height from 355mm to 630mm).The protection degree of YKS series motor is of IP44/IP54,cooling method is of ICW81A YKS Series 3-Phase High Voltage Motor is used to drive various mechanical equipment such as blowers, compressors, pumps, crushers, stock removing machines. It can serve as the prime movers in coalmines, mechanical industries ,power plants and various industrial enterprises. The structure and the mounting type is of IMB3 with continuous duty (S1).The rated frequency is 50HZ and the rated voltage is 6KV 10KV,special voltage requirements should be negotiate with the manufacturer before order is placed. YKS Series 3-Phase High Voltage Motor has such advantages:high efficiency,energy saving,low noise,low vibration,light weight,and reliable performance.Easy for installing and maintenance.
|
|
|
Model Explanation |
|
|
|
|
|
Motor Performance |
|
|
Power range:160kw-7500kw Frame Size:355-1000mm Rated Voltage: 3KV 6KV 10KV Speed;3000rpm 1500rpm 1000rpm 750rpm 600rpm Protection Class: IP44 IP54 IP55 Cooling type；IC81W Ambient Temperature: -15°C~40°C Altitude: not exceed 1000 Meter Rated Frequency: 50Hz/60Hz Insulation Class: F Temprature rise: B Working Duty: S1(Continuous)
|
|
|
Ordering Informations |
|
|
1.Please indicate the motor type,rated output,rated voltage,rated frequency,synchronous speed,Explosion proof Mark,mounting type,rotation direction(view from the shaft extension side)Use of the environment(indoor or outside)If the user havn't point out the rotation and environment,normailly we think is CW roration and used indoor. 2.when user have special requirments,For example:Dispose the stator,bearing explosion proof and bearing temperature sensors,space heater,Plateau use,specical frequency,mounting size change,special output,the user must ,order can be confirm after signing the technical agreement with engneering department . 3.The catalogue is only fpr reference,and there may be variations. 4.This range of motor can also be made into Variable-Frequency motors,the range of frequency of which is 0-100HZ,the output and overall dimensions should be confirm separately. |
|
